Soret Effect#

This MMS case verifies the implementation of the Soret effect in FESTIM. We will only consider diffusion of hydrogen in a unit square domain \(\Omega\) at steady state with a homogeneous diffusion coefficient \(D\) including the Soret effect. Moreover, a Dirichlet boundary condition will be assumed on the boundaries \(\partial \Omega \).

The problem is therefore:

(24)#\[\begin{split} \begin{align} & - \nabla\cdot\vec{\varphi} = -S \quad \text{on } \Omega \\ & \vec{\varphi} = -D \ \nabla{c} - D\frac{Q^* c}{k_B T^2} \ \nabla{T} \\ & c = c_0 \quad \text{on } \partial \Omega \end{align} \end{split}\]

The manufactured exact solution for mobile concentration is:

(25)#\[ \begin{equation} c_\mathrm{exact} = 1 + 4 x^2 + 2 y^2 \end{equation} \]

For this problem, we choose:

(26)#\[\begin{align} & T = 300 + 30 \ x + 40 \ y \\ & Q^* = 4 \\ & D = 2 \end{align}\]

Injecting (25) in (24), we obtain the expressions of \(S\) and \(c_0\):

\[\begin{split} \begin{align} & S = - D\nabla \cdot \left(\frac{Q^* c_\mathrm{exact}}{k_B T^2} \ \nabla{T} \right) -12 D \\ & c_0 = c_\mathrm{exact} \end{align} \end{split}\]

We can then run a FESTIM model with these values and compare the numerical solution with \(c_\mathrm{exact}\).

Show code cell content Hide code cell content

import festim as F
import sympy as sp
import fenics as f
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np

# Create and mark the mesh
nx = ny = 100
fenics_mesh = f.UnitSquareMesh(nx, ny)

volume_markers = f.MeshFunction("size_t", fenics_mesh, fenics_mesh.topology().dim())
volume_markers.set_all(1)

surface_markers = f.MeshFunction(
    "size_t", fenics_mesh, fenics_mesh.topology().dim() - 1
)

surface_markers.set_all(0)


class Boundary(f.SubDomain):
    def inside(self, x, on_boundary):
        return on_boundary


boundary = Boundary()
boundary.mark(surface_markers, 1)

# Create the FESTIM model
my_model = F.Simulation()

my_model.mesh = F.Mesh(
    fenics_mesh, volume_markers=volume_markers, surface_markers=surface_markers
)

# Variational formulation
exact_solution = 1 + 4 * F.x**2 + 2 * F.y**2  # exact solution

T = 300 + 30*F.x + 40 * F.y

D = 2
Q = 4


def grad(u):
    """Computes the gradient of a function u.

    Args:
        u (sympy.Expr): a sympy function

    Returns:
        sympy.Matrix: the gradient of u
    """
    return sp.Matrix([sp.diff(u, F.x), sp.diff(u, F.y)])


def div(u):
    """Computes the divergence of a vector field u.

    Args:
        u (sympy.Matrix): a sympy vector field

    Returns:
        sympy.Expr: the divergence of u
    """
    return sp.diff(u[0], F.x) + sp.diff(u[1], F.y)


mms_source = -D * div((Q * exact_solution) / (F.k_B * T**2) * grad(T)) \
        - div(grad(exact_solution)) * D

my_model.sources = [
    F.Source(
        mms_source,
        volume=1,
        field="solute",
    ),
]

my_model.boundary_conditions = [
    F.DirichletBC(surfaces=[1], value=exact_solution, field="solute"),
]

my_model.materials = F.Material(id=1, D_0=D, E_D=0, Q=Q)

my_model.T = F.Temperature(T)

my_model.settings = F.Settings(
    absolute_tolerance=1e-10, relative_tolerance=1e-10, transient=False, soret=True
)

my_model.initialise()
my_model.run()

Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions

Solving steady state problem...
Calling FFC just-in-time (JIT) compiler, this may take some time.

Calling FFC just-in-time (JIT) compiler, this may take some time.

Solved problem in 1.50 s

Comparison with exact solution#

Show code cell source Hide code cell source

c_exact = f.Expression(sp.printing.ccode(exact_solution), degree=4)
c_exact = f.project(c_exact, f.FunctionSpace(my_model.mesh.mesh, "CG", 1))

computed_solution = my_model.h_transport_problem.mobile.post_processing_solution
E = f.errornorm(computed_solution, c_exact, "L2")
print(f"L2 error: {E:.2e}")

# plot exact solution and computed solution
fig, axs = plt.subplots(1, 3, figsize=(15, 5))
plt.sca(axs[0])
plt.title("Exact solution")
plt.xlabel("x")
plt.ylabel("y")
CS1 = f.plot(c_exact, cmap="inferno")
plt.sca(axs[1])
plt.xlabel("x")
plt.title("Computed solution")
CS2 = f.plot(computed_solution, cmap="inferno")

plt.colorbar(CS2, ax=[axs[0], axs[1]], shrink=0.8)

axs[0].sharey(axs[1])
plt.setp(axs[1].get_yticklabels(), visible=False)

for CS in [CS1, CS2]:
    CS.set_edgecolor("face")


def compute_arc_length(xs, ys):
    """Computes the arc length of x,y points based
    on x and y arrays
    """
    points = np.vstack((xs, ys)).T
    distance = np.linalg.norm(points[1:] - points[:-1], axis=1)
    arc_length = np.insert(np.cumsum(distance), 0, [0.0])
    return arc_length


# define the profiles
profiles = [
    {"start": (0.0, 0.0), "end": (1.0, 1.0)},
    {"start": (0.2, 0.8), "end": (0.7, 0.2)},
    {"start": (0.2, 0.6), "end": (0.8, 0.8)},
]

# plot the profiles on the right subplot
for i, profile in enumerate(profiles):
    start_x, start_y = profile["start"]
    end_x, end_y = profile["end"]
    plt.sca(axs[1])
    (l,) = plt.plot([start_x, end_x], [start_y, end_y])

    plt.sca(axs[2])

    points_x_exact = np.linspace(start_x, end_x, num=30)
    points_y_exact = np.linspace(start_y, end_y, num=30)
    arc_length_exact = compute_arc_length(points_x_exact, points_y_exact)
    u_values = [c_exact(x, y) for x, y in zip(points_x_exact, points_y_exact)]

    points_x = np.linspace(start_x, end_x, num=100)
    points_y = np.linspace(start_y, end_y, num=100)
    arc_lengths = compute_arc_length(points_x, points_y)
    computed_values = [computed_solution(x, y) for x, y in zip(points_x, points_y)]

    (exact_line,) = plt.plot(
        arc_length_exact,
        u_values,
        color=l.get_color(),
        marker="o",
        linestyle="None",
        alpha=0.3,
    )
    (computed_line,) = plt.plot(arc_lengths, computed_values, color=l.get_color())

plt.sca(axs[2])
plt.xlabel("Arc length")
plt.ylabel("Solution")

legend_marker = mpl.lines.Line2D(
    [],
    [],
    color="black",
    marker=exact_line.get_marker(),
    linestyle="None",
    label="Exact",
)

legend_line = mpl.lines.Line2D([], [], color="black", label="Computed")
plt.legend(
    [legend_marker, legend_line], [legend_marker.get_label(), legend_line.get_label()]
)

plt.grid(alpha=0.3)
plt.gca().spines[["right", "top"]].set_visible(False)
plt.show()

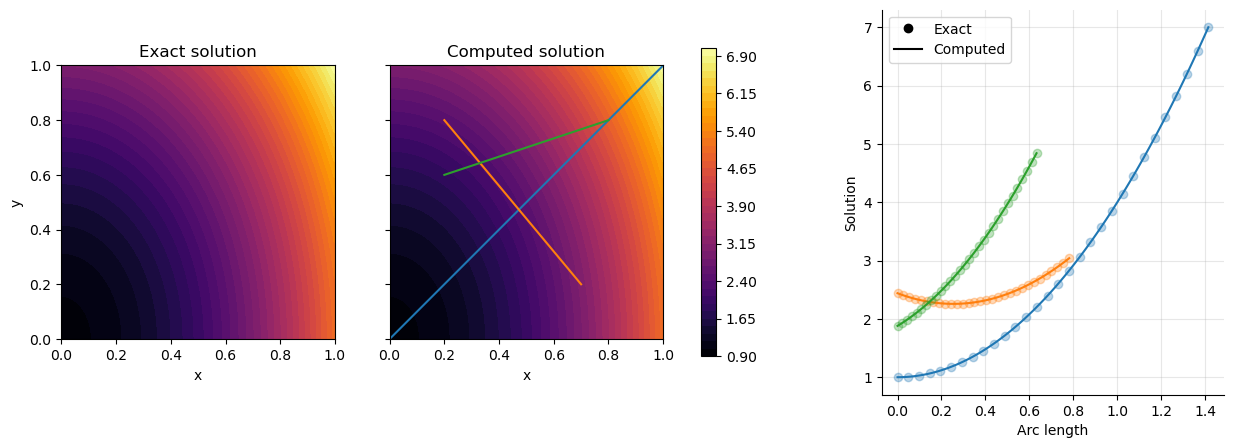

L2 error: 9.12e-05

../../_images/0537fbf848bc7981794bcd6ae1d326e602edf67981eb00849661a60754b767cc.png

The exact and computed solutions are in excellent agreement.
