Diffusion with dissociation flux#
This example is a diffusion problem with one boundary under a dissociation flux (DissociationFlux).
The problem is:
(10)#\[\begin{split}
\begin{align}
\nabla \cdot (D \ \nabla{c}) = -S & \quad \text{on } \Omega \\
c = c_0 & \quad \text{on } x = 0 \\
-D \ \nabla c \cdot \mathbf{n} = K_\mathrm{d} \ P & \quad \text{on } x = 1 \\
\end{align}
\end{split}\]
The exact solution for mobile concentration is:
(11)#\[
\begin{equation}
c_\mathrm{exact} = 1 + 2 x^2
\end{equation}
\]
Injecting (11) in (10), we obtain the expressions of \(S\), \(c_0\), and \(K_\mathrm{d}\):
(12)#\[\begin{align}
& S = -4 D \\
& c_0 = c_\mathrm{exact}\\
& P = \frac{4D}{K_\mathrm{d}}
\end{align}\]
We can then run a FESTIM model with these values and compare the numerical solution with \(c_\mathrm{exact}\).
FESTIM code#
import festim as F
import sympy as sp
import fenics as f
import matplotlib as mpl
import matplotlib.pyplot as plt
import numpy as np
# Create and mark the mesh
nx = ny = 100
fenics_mesh = f.UnitSquareMesh(nx, ny)
volume_markers = f.MeshFunction("size_t", fenics_mesh, fenics_mesh.topology().dim())
volume_markers.set_all(1)
left_surface = f.CompiledSubDomain("near(x[0], 0.0)")
right_surface = f.CompiledSubDomain("near(x[0], 1.0)")
surface_markers = f.MeshFunction(
"size_t", fenics_mesh, fenics_mesh.topology().dim() - 1
)
surface_markers.set_all(0)
left_surface.mark(surface_markers, 1)
right_surface.mark(surface_markers, 2)
# Create the FESTIM model
my_model = F.Simulation()
my_model.mesh = F.Mesh(
fenics_mesh, volume_markers=volume_markers, surface_markers=surface_markers
)
# Variational formulation
exact_solution = 10 + 2 * F.x**2 # exact solution
D = 20
K_d = 10
my_model.sources = [F.Source(-4 * D, volume=1, field="solute")]
my_model.boundary_conditions = [
F.DirichletBC(surfaces=[1], value=exact_solution, field="solute"),
F.DissociationFlux(surfaces=[2], Kd_0=K_d, E_Kd=0, P=4 * D / K_d),
]
my_model.materials = F.Material(id=1, D_0=D, E_D=0)
my_model.T = F.Temperature(500) # ignored in this problem
my_model.settings = F.Settings(
absolute_tolerance=1e-10,
relative_tolerance=1e-10,
transient=False,
)
my_model.initialise()
my_model.run()
Calling FFC just-in-time (JIT) compiler, this may take some time.
Calling FFC just-in-time (JIT) compiler, this may take some time.
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Calling FFC just-in-time (JIT) compiler, this may take some time.
Calling FFC just-in-time (JIT) compiler, this may take some time.
Solved problem in 1.20 s

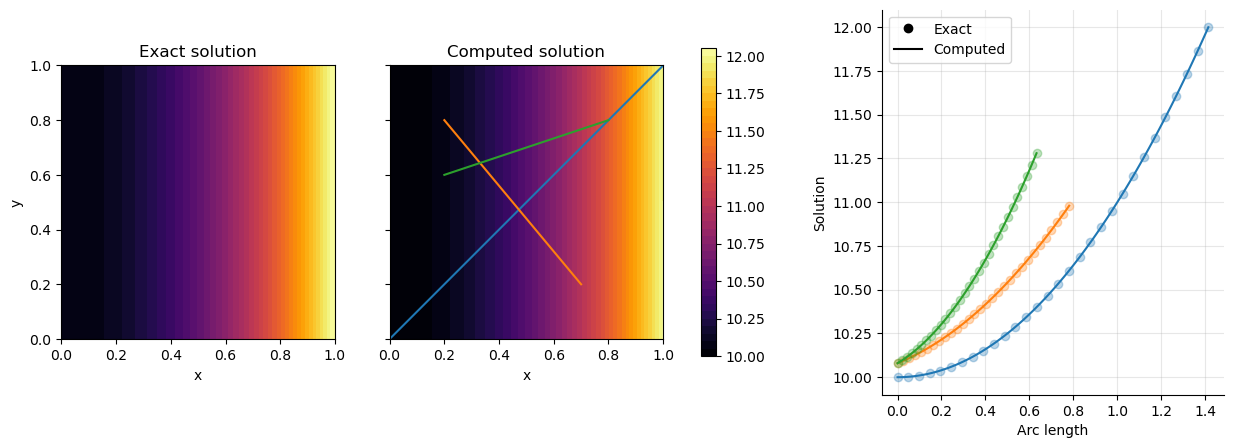

Comparison with exact solution#
Show code cell source
c_exact = f.Expression(sp.printing.ccode(exact_solution), degree=4)
c_exact = f.project(c_exact, f.FunctionSpace(my_model.mesh.mesh, "CG", 1))
computed_solution = my_model.h_transport_problem.mobile.post_processing_solution
E = f.errornorm(computed_solution, c_exact, "L2")
print(f"L2 error: {E:.2e}")
# plot exact solution and computed solution
fig, axs = plt.subplots(1, 3, figsize=(15, 5))
plt.sca(axs[0])
plt.title("Exact solution")
plt.xlabel("x")
plt.ylabel("y")
CS1 = f.plot(c_exact, cmap="inferno")
plt.sca(axs[1])
plt.xlabel("x")
plt.title("Computed solution")
CS2 = f.plot(computed_solution, cmap="inferno")
plt.colorbar(CS2, ax=[axs[0], axs[1]], shrink=0.8)
axs[0].sharey(axs[1])
plt.setp(axs[1].get_yticklabels(), visible=False)
for CS in [CS1, CS2]:
CS.set_edgecolor("face")
def compute_arc_length(xs, ys):
"""Computes the arc length of x,y points based
on x and y arrays
"""
points = np.vstack((xs, ys)).T
distance = np.linalg.norm(points[1:] - points[:-1], axis=1)
arc_length = np.insert(np.cumsum(distance), 0, [0.0])
return arc_length
# define the profiles
profiles = [
{"start": (0.0, 0.0), "end": (1.0, 1.0)},
{"start": (0.2, 0.8), "end": (0.7, 0.2)},
{"start": (0.2, 0.6), "end": (0.8, 0.8)},
]
# plot the profiles on the right subplot
for i, profile in enumerate(profiles):
start_x, start_y = profile["start"]
end_x, end_y = profile["end"]
plt.sca(axs[1])
(l,) = plt.plot([start_x, end_x], [start_y, end_y])
plt.sca(axs[2])
points_x_exact = np.linspace(start_x, end_x, num=30)
points_y_exact = np.linspace(start_y, end_y, num=30)
arc_length_exact = compute_arc_length(points_x_exact, points_y_exact)
u_values = [c_exact(x, y) for x, y in zip(points_x_exact, points_y_exact)]
points_x = np.linspace(start_x, end_x, num=100)
points_y = np.linspace(start_y, end_y, num=100)
arc_lengths = compute_arc_length(points_x, points_y)
computed_values = [computed_solution(x, y) for x, y in zip(points_x, points_y)]
(exact_line,) = plt.plot(
arc_length_exact, u_values, color=l.get_color(), marker="o", linestyle="None", alpha=0.3
)
(computed_line,) = plt.plot(arc_lengths, computed_values, color=l.get_color())
plt.sca(axs[2])
plt.xlabel("Arc length")
plt.ylabel("Solution")
legend_marker = mpl.lines.Line2D(
[],
[],
color="black",
marker=exact_line.get_marker(),
linestyle="None",
label="Exact",
)
legend_line = mpl.lines.Line2D([], [], color="black", label="Computed")
plt.legend(
[legend_marker, legend_line], [legend_marker.get_label(), legend_line.get_label()]
)
plt.grid(alpha=0.3)
plt.gca().spines[["right", "top"]].set_visible(False)
for ext in ["png", "svg", "pdf"]:
plt.savefig(f"mms_fluxes.{ext}")
plt.show()
Calling FFC just-in-time (JIT) compiler, this may take some time.
Calling FFC just-in-time (JIT) compiler, this may take some time.
L2 error: 3.55e-05

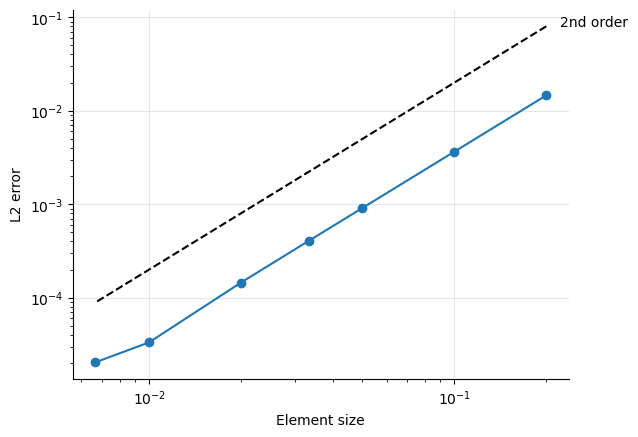

Compute convergence rates#
It is also possible to compute how the numerical error decreases as we increase the number of cells. By iteratively refining the mesh, we find that the error exhibits a second order convergence rate. This is expected for this particular problem as first order finite elements are used.
Show code cell source
errors = []
ns = [5, 10, 20, 30, 50, 100, 150]
for n in ns:
nx = ny = n
fenics_mesh = f.UnitSquareMesh(nx, ny)
volume_markers = f.MeshFunction("size_t", fenics_mesh, fenics_mesh.topology().dim())
volume_markers.set_all(1)
surface_markers = f.MeshFunction(
"size_t", fenics_mesh, fenics_mesh.topology().dim() - 1
)
surface_markers.set_all(1)
my_model.mesh = F.Mesh(
fenics_mesh, volume_markers=volume_markers, surface_markers=surface_markers
)
my_model.initialise()
my_model.run()
computed_solution = my_model.h_transport_problem.mobile.post_processing_solution
errors.append(f.errornorm(computed_solution, c_exact, "L2"))
h = 1 / np.array(ns)
plt.loglog(h, errors, marker="o")
plt.xlabel("Element size")
plt.ylabel("L2 error")
plt.loglog(h, 2 * h**2, linestyle="--", color="black")
plt.annotate("2nd order", (h[0], 2 * h[0]**2), textcoords="offset points", xytext=(10, 0))
plt.grid(alpha=0.3)
plt.gca().spines[["right", "top"]].set_visible(False)
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Solved problem in 0.00 s
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Solved problem in 0.00 s
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Solved problem in 0.00 s
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Solved problem in 0.00 s
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Solved problem in 0.00 s
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Solved problem in 0.10 s
Defining initial values
Defining variational problem
Defining source terms
Defining boundary conditions
Solving steady state problem...
Solved problem in 0.30 s
